PAC Storage PS 2000 Series

SAN and NAS Storage with Cloud Gateway

storage area network
PS 2000 4U 24-Bay 3.5 inch drives
storage area network
Replication data storage
PS 2000 4U 24-Bay 3.5 inch drives
Replication data storage
HDD with SSD cache
PS 2000 4U 24-Bay 3.5 inch drives
HDD with SSD cache
fully redundant storage area network array
PS 2000 4U 24-Bay with Dual Controllers
fully redundant storage area network array
AI data storage needs

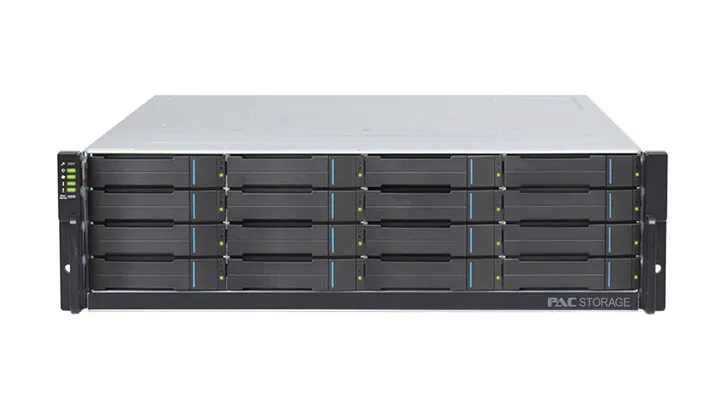

PS 2000 3U 16-Bay 3.5 inch drives
AI data storage needs
virtualization data storage
PS 2000 3U 16-Bay 3.5 inch drives
virtualization data storage
media and entertainment storage
PS 2000 3U 16-Bay 3.5 inch drives
media and entertainment storage
auto tiering data storage
PS 2000 3U 16-Bay with Dual Controllers
auto tiering data storage
snapshot feature in data storage
PS 2000 3U 16-Bay with HBAs
snapshot feature in data storage
CIFS vs. SMB storage
PS 2000 2U 24-Bay 2.5 inch drives
CIFS vs. SMB storage
best data storage for security
PS 2000 2U 24-Bay 2.5 inch drives
best data storage for security
encrypted drives for data storage
PS 2000 2U 24-Bay 2.5 inch drives
encrypted drives for data storage
storage area network array
PS 2000 2U 24-Bay with Dual Controllers
storage area network array
san storage
PS 2000 2U 12-Bay 3.5 inch drives
san storage
entry level data storage
PS 2000 2U 12-Bay 3.5 inch drives
entry level data storage
pac storage data storage
PS 2000 2U 12-Bay 3.5 inch drives
pac storage data storage
pac storage hardware
PS 2000 2U 12-Bay with Dual Controllers
pac storage hardware

PAC Storage PS 2000 is a high availability solution exclusively designed for enterprises, integrating SAN Storage, NAS Storage with Cloud Gateway features under dual controllers. The PS 2000 is our enterprise entry-level array and comes with multiple form factors, flexible host boards to choose from, and stable, reliable modular design with high expandability. For software, it comes with complete data services and simple, intuitive management interfaces. The whole product line is fast, flexible, and reliable, so that you can find the perfect storage device according to your performance & budget needs

RAID and JBOD Available In:

  • 2U 12-Bay, 3.5” Drives
  • 2U 24-Bay, 2.5” Drives
  • 3U 16-Bay, 3.5” Drives
  • 4U 24-Bay, 3.5” Drives

*Please note you can run 2.5” Drives in the 3.5” Carriers with Carrier Converters. This allows you to also run SSD(2.5”) pools in the same 3.5” chassis.

Product Advantages

High Performance:

  • Dual Active-Active Intel Controllers: Dual Core
  • RAID System Features 12GB/s SAS Drive Integration
  • Supports up to 128GB Cache Memory
  • Up to 200K IOPS
  • 32Gb FC, 25GbE Connectivity Available

High Scalability:

  • Scales up to 448 Drives: SAS, SSD, 10K, 7200NL
  • Newly released 14 & 16 TB Drives Available
  • Scalable to 6.2PB
  • Unlimited Cloud Scalability

Unified Storage with Cloud Integration:

  • Cloud Integration for Private and Public Cloud
  • Supports Cloud Tiering, Cache and Cloud Back-Up

High Availability & Reliability:

  • No Single Point of Failure: 99.999% Up Time
  • Proprietary Non-Volatile Cache Memory
  • Three Year Warranty, Expandable to 10 Years

Data Protection:

  • Intelligent Drive Recovery (IDR)
  • Snapshot
  • Local & Remote Replication, File-Level Rsync
  • Cloud Back-up

Cost Performance:

  • Best ROI for Comprehensive and High-Performance Storage
  • Ultra-Competitive Pricing and No Hidden Fees

Simplicity:

  • Easy to Deploy & Manage
  • Extreme Connectivity Options with Up To 24 Host Ports
  • User-Friendly GUI Management Interface Provides Single Control Center for System Management and Resource Analyses
  • Hosts Can Access the Same LUNs Simultaneously via both Controllers
VIEW SPEC SHEET
Form Factor: 2U 12-Bay, 2U 24-Bay, 3U 16 Bay, 4U 24-bay
Controller: Dual-redundant
CPU: Intel Broadwell-DE (Pentium) 2 Core
Onboard Host Ports: 4 x 1GbE ports
HBA Host Ports(add-on per controller): 4 x 16Gb/s FC ports
2 x 32Gb/s FC ports
4 x 10GbE ports (SFP+)
2 x 10GbE ports (RJ-45)
4 x 25GbE (SFP28)
4 x 40GbE (QSFP+)
2 x 12Gb/s SAS ports
Max Number Host Ports: 24
Cache Memory: 16GB upgradeable to 256GB
Max SSD Cache Pool: 3.2TB
Cache Backup Techniques: Super capacitor+Flash module
Maximum Number of Drives: 896 (with expansion board)
Drive Connectivity: 12Gb/s SAS
Drive Advanced Features: S.M.A.R.T. support/ Automatic bad-sector reassignment/ Dedicated bandwidth to each connected drive
Supported Drives: 2.5" SAS SSDs
2.5" 10,000 RPM SAS drives, 2.5" 15,000 RPM SAS drives
3.5" 7,200 RPM Nearline SAS drives
Cloud Gateway:

Available Integration with public and/or private cloud
Data Protection: Default software features include:
SED (Self-encrypting drives)
Thin-provisioning
Snapshot: 64 per volume/ 128 per system
Block-level local replication: Replication pairs per source volume: 4; Replication pairs per system: 16
File-level remote replication (Rsync)
Optional software features require additional license:
SSD cache
Automated tiering (2/ 4 tiers)
Advanced snapshot: 256 per volume/ 4096 per system
Advanced block-level local replication: Replication pairs per source volume: 8 ; Replication pairs per system: 256
Advanced block-level remote replication: Replication pairs per source volume: 8 ; Replication pairs per system: 64
RAID Functionality: Global, dedicated or enclosure hot-spare
RAID levels supported : RAID 0, 1, (1+0), 3, 5, 6, 10, 30, 50, 60
Availability and Reliability: Redundant, hot-swappable hardware modules/ CacheSafe technology/ Multi-pathing support
Notification: Event notification methods including email and SNMP trap.
Management: Web-based management software and Module status LED indicators
Automated cache flush and caching mode operation
Storage Resource Management to analyze history records
OS Support: Windows Server 2008 / 2008 R2 / 2012 / 2012 R2 / 2016 (including Hyper-V), Windows 7 SP1 / Windows 8.1, RedHat Enterprise Linux, CentOS, SUSE Linux Enterprise, Sun Solaris, Mac OS X, VMware, Citrix XenServer
Protocol Support:

File Level Protocol: CIFS/SMB, AFP, NFS, FTP, FXP, WebDAV

Block Level Protocol: FC, FCoE, iSCSI, InfiniBand, SAS

Object Protocol: RESTful API

Support

Our Technical Services Team at PAC Storage provides support and customer care, including assistance with installation, configuration, warranty and repair. We offer tech support for the life of your product during the hours 7am to 6pm PST Monday through Friday, and Our Field Systems Team is on call to assist with any urgent issues.

All PAC Storage products carry a 3 year manufacturer’s warranty.  This warranty is upgradeable up to a maximum of 10 years from the date of purchase. In addition, we offer advanced replacement of any defective parts within the warranty period.



Please feel free to contact us:

Phone: 949.360.1796

Email: sales@pacstorage.com

Contact Support

Unified Storage:

  • Integrates file, block, and object level into a cloud integrated enterprise storage system

Simplicity:

  • The user-friendly GUI management interface provides a single control center for system management and resources monitoring

Exceptional Cost Performance:

  • Powerful RAID systems featuring 12GB/s SAS drive side integration
  • All flash / hybrid flash supported
  • Flexible host interface options
  • Scalable up to 896 drives with high density JBODs
  • Comprehensive connectivity options
  • Supports up to 128GB cache memory

Cloud Integration:

  • Intelligent data allocation algorithms allow for excellent utilization of client preferred cloud providers

Availability & Reliability:

  • IDR support to ensure all hard drives are healthy to prevent from rebuild
  • Redundant Dual controllers and non-single-point-of-failure hardware design
  • Three Year Warranty included, expandable to 10 years.
