Scale Out NAS Storage

Enterprise Scale-Out NAS Storage
Ultimate Performance & Scalability

Scale Out NAS Storage

Enterprise Scale-Out NAS Storage
Ultimate Performance & Scalability

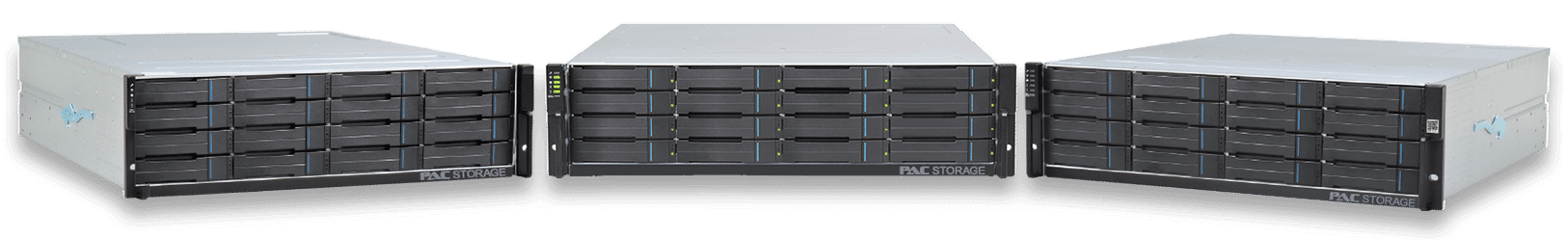

PAC Storage Scale Out NAS Storage solutions offers ultimate high performance and capacity expansion capabilities. Utilize the horsepower of each node with the efficiency and full data protection of a cluster configuration to get 100+ GBps Read/Write speed and up to 100 PB of storage. PAC Storage Scale Out NAS provides the flexibility to meet different application requirements, whether throughput-intensive high-performance computing (HPC) applications or capacity-intensive workloads, such as Media and Entertainment, Surveillance, Backup, and Archive.

Available In:

  • 3U 16-Bay, 3.5” Drives
  • 4U 24-Bay, 3.5” Drives
  • 4U 60-Bay, 3.5” Drives
Form Factor: 3U 16 Bay, 4U 24-bay, 4U 60-Bay
Controller: Single Controller per node
CPU: Intel Skylake-D (Xeon-D) 12-Core
Number of Nodes: 3-144
Network Types Combinations: Combination 1: Onboard 2x10Gb/s (Front-end) + Onboard 2x10Gb/s(Internal)
Combination 2: Onboard 4x10Gb/s (Front-end) + Host Board 2x25Gb/s(Internal)
Combination 3: Onboard 4x10Gb/s (Front-end) + Host Board 2x40Gb/s(Internal)
Combination 4: Host Board 2x40Gb/s (Front-end) + Host Board 2x40Gb/s(Internal)
Combination 5: Host Board 2x25Gb/s (Front-end) + Host Board 2x25Gb/s(Internal)
Max Number Host Ports: 24
Cache Memory: 32GB upgradeable to 512GB
Max SSD Cache Pool: 3.2TB
Cache Backup Techniques: Super capacitor+Flash module
Maximum Number of Drives (per node): 3U 16-Bay: 48; 4U 24-Bay: 72; 4U 60-Bay: 120
Drive Connectivity: 12Gb/s SAS
Drive Advanced Features: S.M.A.R.T. support/ Automatic bad-sector reassignment/ Dedicated bandwidth to each connected drive
Supported Drives: 3.5″ 7,200 RPM Nearline SAS drives
Protocol Support: File Level Protocol: CIFS/SMB, NFS
Cloud Gateway: Available Integration with public and/or private cloud
Data Protection: Data Protection:
Distributed
Node Protection: Erasure code (2+1 or 4+1 or 4+2 or 8+1 or 8+2)
Replica (x2, x3)
File-level remote replication (Rsync)
Data Service
SED (Self-encrypting drives)
RAID Functionality: Global, dedicated or enclosure hot-spare
RAID levels supported : RAID 5, 6
Availability and Reliability: Self-healing design
WORM
Notification: Event notification methods including email and SNMP trap.
Management: Web-based management software and Module status LED indicators
Pool and RAID management
Storage Resource Management to analyze history records
OS Support: Windows Server 2008 / 2008 R2 / 2012 / 2012 R2 / 2016 (including Hyper-V), Windows 7 SP1 / Windows 8.1, RedHat Enterprise Linux, CentOS, SUSE Linux Enterprise, Sun Solaris, Mac OS X, VMware, Citrix XenServer

Support

Our Technical Services Team at PAC Storage provides support and customer care, including assistance with installation, configuration, warranty and repair. We offer tech support for the life of your product during the hours 7am to 6pm PST Monday through Friday, and Our Field Systems Team is on call to assist with any urgent issues.

All PAC Storage products carry a 3 year manufacturer’s warranty.  This warranty is upgradeable up to a maximum of 10 years from the date of purchase. In addition, we offer advanced replacement of any defective parts within the warranty period.

Please do not hesitate to reach out to us:

Phone: 949.360.1796

Email: sales@pacstorage.com

Product Advantages

HIGH PERFORMANCE:

  • Single Controller with Intel Skylake-D 12 Core CPU, Dual Controller available for 60-Bay
  • 100+ Gbps Read/Write speed single cluster
  • Supports up to 256GB Cache Memory per node
  • 25GbE and 40GbE Connectivity Available
  • Single node performance 2 GBps Read
  • Single node performance 1.1 GBps Write
  • Auto-balancing evenly distributes data across all nodes improving data access performance

HIGH SCALABILITY:

  • Scales out up to 144 Nodes
  • Single cluster capacity up to 100 PB storage
  • Scales up to 120 Drives per node
  • Newly released 14 & 16 TB Drives Available
  • Unlimited Cloud Scalability

UNIFIED STORAGE WITH CLOUD INTEGRATION:

  • Seamless Cloud Integration for Private and Public Cloud
  • Supports Cloud Tiering, Cache and Cloud Back-Up

HIGH AVAILABILITY & RELIABILITY:

  • No Single Point of Failure: 99.999% Up Time
  • Propriety Non-Volatile Cache Memory
  • Supports Replica and Erasure Code Data Protection
  • Full Self-Healing and Data Recovery Across All Nodes
  • Three Year Warranty, Expandable to 10 Years

DATA PROTECTION:

  • Supports Self-Encrypting Drive, SED
  • Supports Write Once Read Many
  • Intelligent Drive Recovery (IDR)
  • Snapshot
  • Local & Remote Replication, File-Level Rsync
  • Cloud Back-up

COST PERFORMANCE:

  • Best ROI for Comprehensive and High-Performance Storage
  • Ultra-Competitive Pricing and No Hidden Fees

SIMPLICITY:

  • Easy to Deploy & Manage Multiple Nodes
  • Connectivity Options with up to 8 Ports per Node
  • User-Friendly GUI Management Interface Provides Single Control Center for System Management and Resource Analyses

Unified Storage:

  • Integrates file, block, and object-level into a cloud-integrated enterprise storage system

Simplicity:

  • The user-friendly GUI management interface provides a single control center for system management and resources monitoring

Exceptional Cost Performance:

  • Powerful RAID systems featuring 12GB/s SAS drive side integration
  • All-flash / hybrid-flash supported
  • Flexible host interface options
  • Scalable up to 896 drives with high-density JBODs
  • Comprehensive connectivity options
  • Supports up to 128GB cache memory

Cloud Integration:

  • Intelligent data allocation algorithms allow for excellent utilization of client preferred cloud providers

Availability & Reliability:

  • IDR support to ensure all hard drives are healthy to prevent from rebuild
  • Redundant Dual controllers and non-single-point-of-failure hardware design
  • Three Year Warranty included, expandable to 10 years.
